Outdoor Shoulder Press SR03-O
SR03/ODownloads
Description

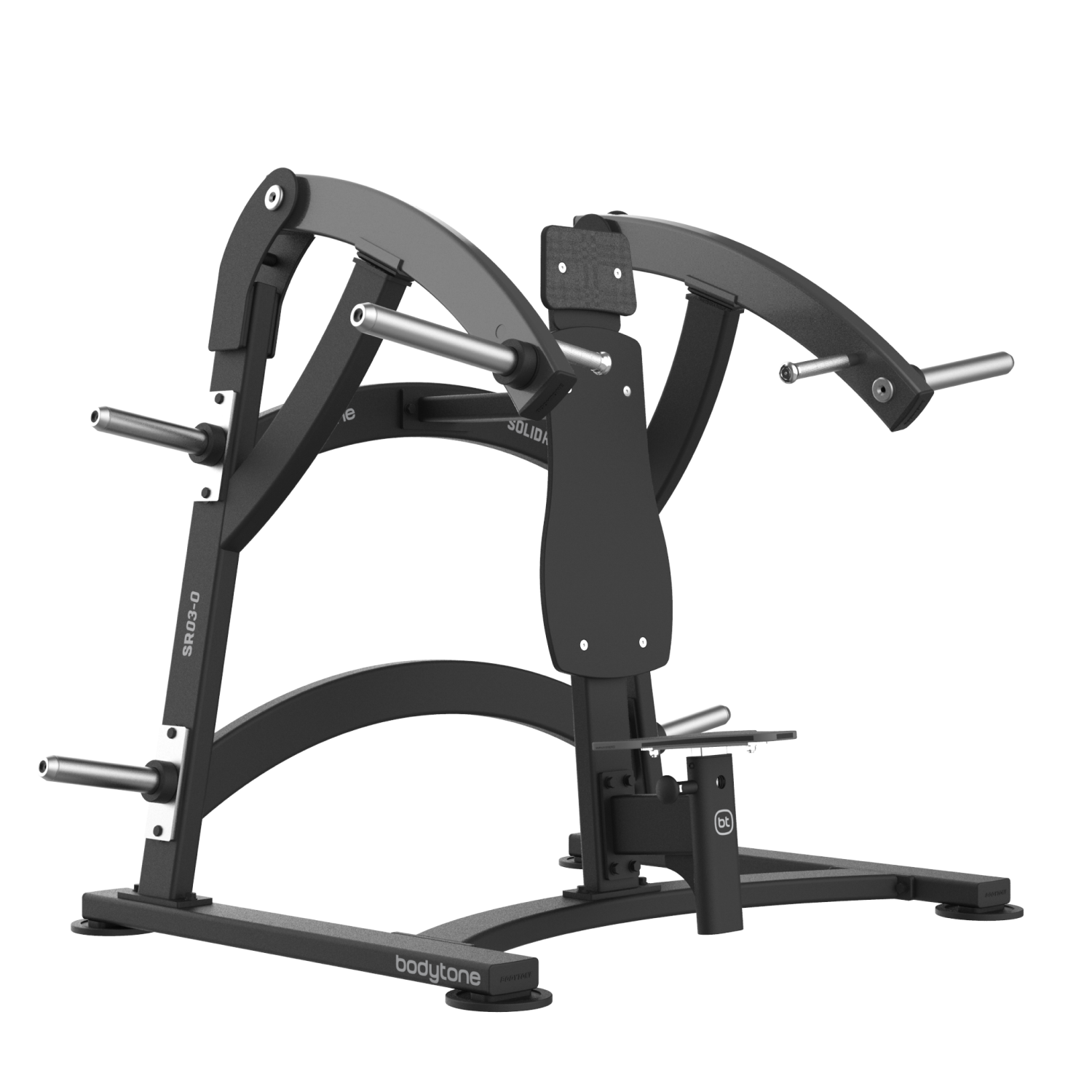

Solid Rock professional weight training machine SR03-O Outdoor
Solid Rock professional weight training machines stand out for their design and innovation. They have a careful aesthetic and are equipped with the latest technology. Now we present the new outdoor range.
Solid Rock equipment uses technology from the automotive industry so that the structure and paint last up to 10 years or more. A guarantee of quality, resistance and durability.
Additional informationAdditional information
| Product Range | |
|---|---|
| Training type | |
| Product Line | |
| Sports | |
| Net Weight | 197 kg |
| structure | 110 x 52 mm steel tubes with 3 mm thick. Soldier according to the regulation of UNE 10219 , Quality S-275-J0H. Enriched and optimized to maintain a constant section in the curved process , thus avoiding sensitive areas and minimizing the break rate. Cold curved process , through 4 roller system , avoiding all deformation in the process and maintaining physical characteristics throughout the piece. Closed welding perimeter at structural points and union plates. |
| units | one |
| Use zone | Exterior |
| Weight | |
| Painting Process | 5 layers of paint. 200 Micras Nearlings and stabilized by total immersion of the pieces in different degreasing solutions to guarantee a perfect and complete cleaning of the base material. Antioxidant Printing of zinc phosphate to guarantee adequate insulation of internal oxidation and good adhesion of the paint. 3 Final layers of epoxy paint of polyester powder , special exterior dried to 240oC. Superial polyester protective varnish layer. |
| Assembly Process | 13 mm plaque system against plate , to avoid slacks and torsions in the maximum effort areas. An ergonomic and biomechanical study to optimize each exercise. |
| Assembled Dimensions | 184 x 121 x 143 cm |
| Work zone | Upper train |
| Bases | 4 Anti -Deliver Conteers. |
| bearings | SKF 6205 2Z. STAINLESS STEEL. Double roller rollers , housed in a closed bush , anti slack , ensuring a constant movement direction. |
| Regulation Levels | AISI 316 \ stainless steel seat beal, special anticorrosion in marine environments. Adjustable with 8 laser recorded positions. Regulation system by means of a single bolt , manufactured in techno-polymer with 750 kg breakage index. |
| Grips | Anodized aluminum , rolled favoring grip. |
| axes | AISI 316 \ Stainless Steel Mechanized Axis, Austenitic steels more resistant to corrosion with respect to class A2 thanks to the presence of molybdenum , which allows use in aggressive environments such as boiling sulfuric acid or boiling or in environments that contain chlorides up to certain levels . Widely used in cellulose industries, food and sailors. Its support is formed by 10 mm plates cut to laser with another 10 mm thick plate to reinforce and get a soft movement without slack or torsions produced by the continuous use or load. |
| Loading capacity | 4 On each arm , discs of 5 or 10 kg (discs not included) |
| Measures | 184 x 121 x 143 cm |
