Leg Hack Squat SR09E
SR09EDownloads
Description

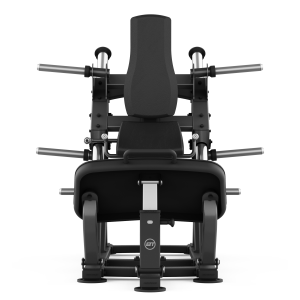

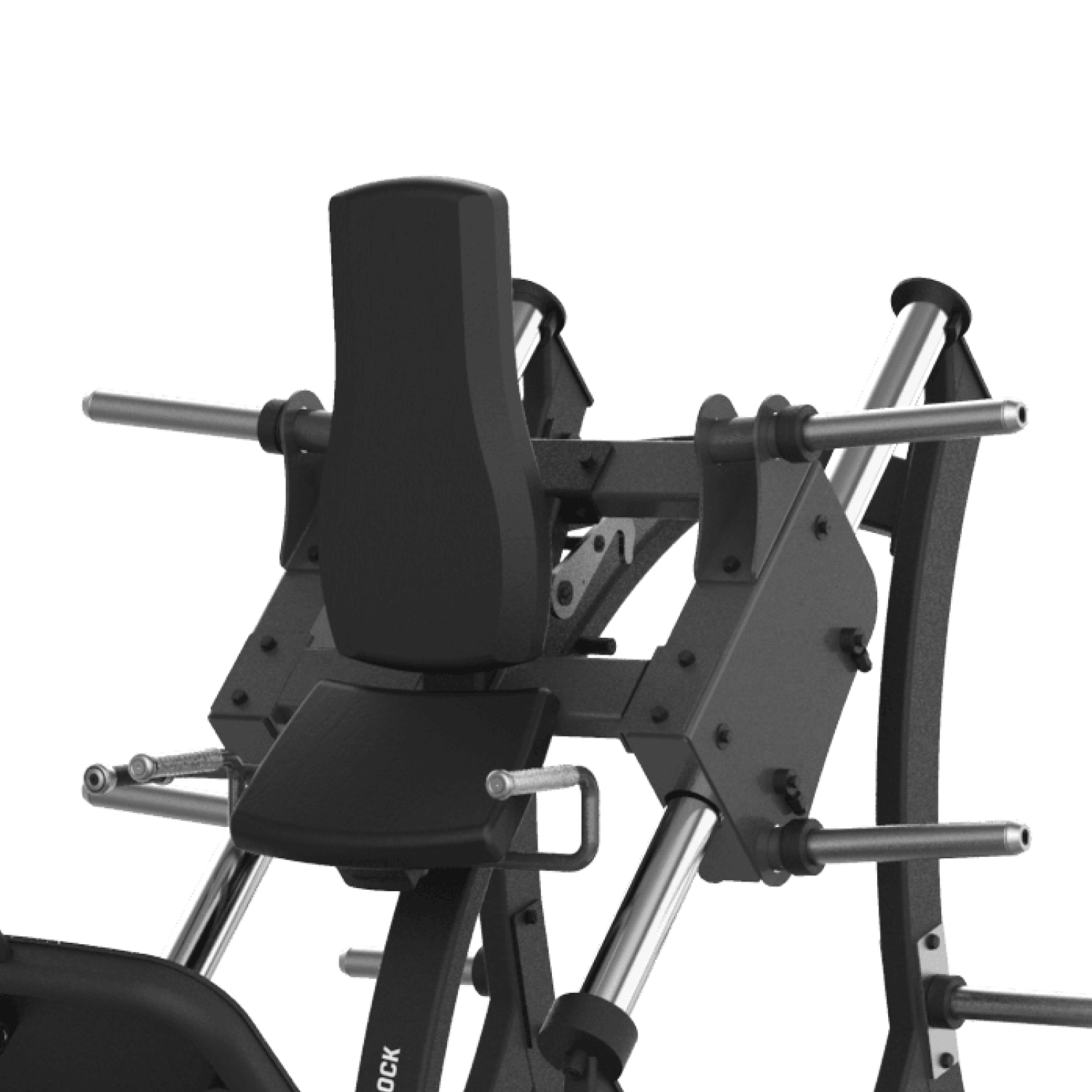

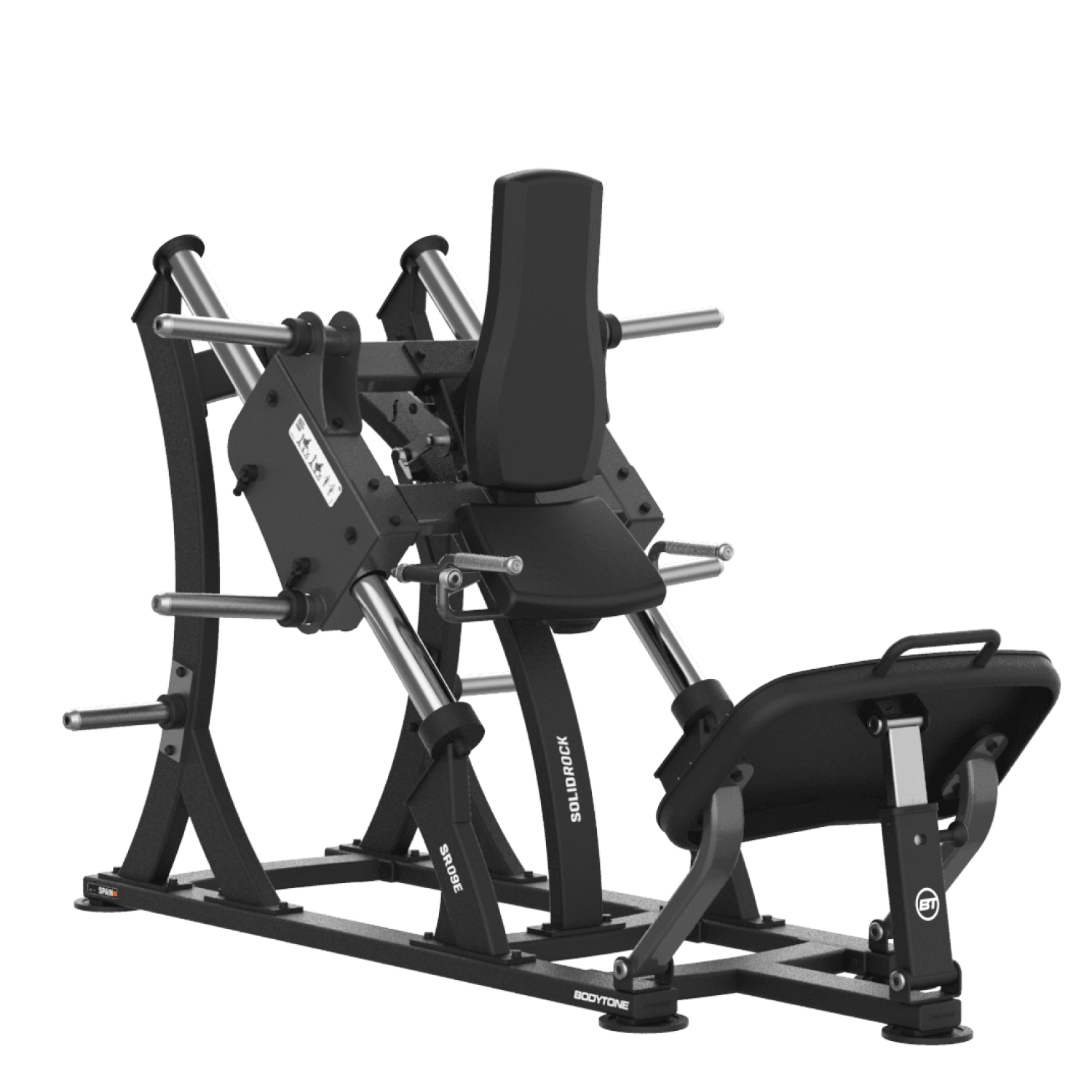

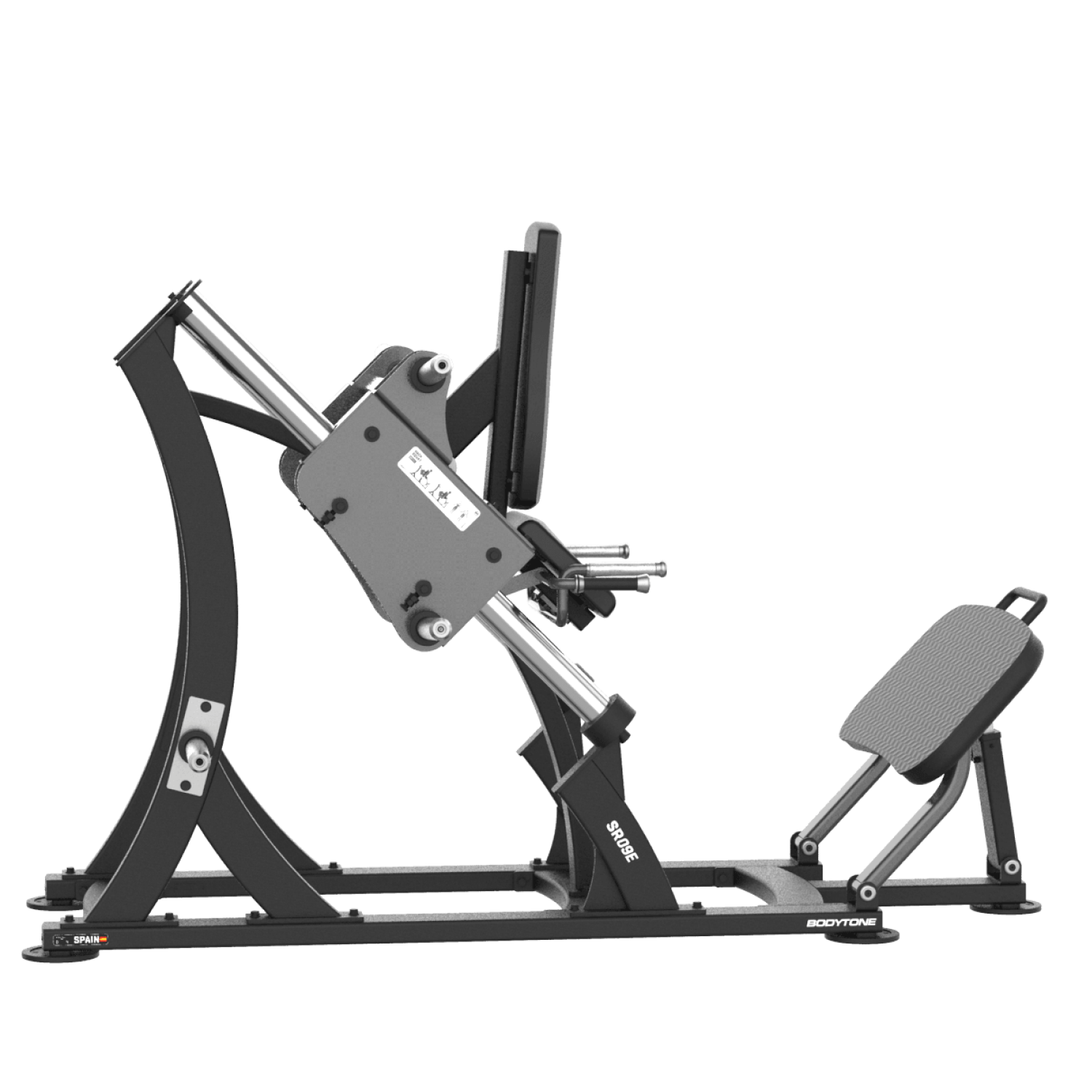

Jaca press machine for professional Squat SR09E
Solid Rock professional weight training machines stand out for their design and innovation. They have a careful aesthetic and are equipped with the latest technology to get the most out of the athlete.
In the line of Bodytone Solid Rock strength machines, our brand is committed to a completely renewed design where curves and design prevail together to the corporate color, green, which gives it that sporty and elegant air.
The Squat SR09E model is designed to gain muscle mass in the legs.
Solid Rock equipment uses technology from the automotive industry so that the structure and paint last up to 10 years or more. A guarantee of quality, resistance and durability.
Additional informationAdditional information
| Weight | 275 kg |
|---|---|
| Dimensions | 240 × 151 × 150 cm |
| Product Range | |
| Training type | |
| Product Line | |
| Sports | |
| structure | 110 x 52 mm steel tubes with 3 mm thick. Soldier according to the regulation of UNE 10219 , Quality S-275-J0H. Enriched and optimized to maintain a constant section in the curved process , thus avoiding sensitive areas and minimizing the break rate. Cold curved process , through 4 roller system , avoiding all deformation in the process and maintaining physical characteristics throughout the piece. Closed welding perimeter at structural points and union plates. |
| Materials and finishes | 20 mm thick rubber finishes in disc supports. 50 mm thick rubber finishes to support moving parts. |
| units | one |
| Use zone | Inside |
| Painting Process | 3 layers of paint. Upon and stabilized steel by total immersion of the pieces in different degreasing solutions to guarantee a perfect and complete cleaning of the base material. Antioxidant Printing to guarantee adequate isolation of internal oxidation and a good adhesion of the paint. 2 Final layers of epoxy paint of polyester powder , drying 240oC. |
| Assembly Process | 10 mm plaque system against plate , to avoid slacks and torsions in the maximum effort areas. An ergonomic and biomechanical study to optimize each exercise. |
| design | Study of biomechanics and ergonomics under the supervision of associated professionals and athletes. After a long design period; From the sketch , research in Motorering , production of prototypes , test by professional athletes our products are market. |
| Assembled Dimensions | 240 x 190 x 152 cm |
| Bases | 4 Anti -Deliver Conteers. |
| bearings | SKF Double belt rollers , housed in a closed bush , anti slack , ensuring a constant movement direction. |
| Regulation Levels | Adjustable support by pop -pin. Regulation system by means of a single bolt , manufactured in techno-polymer with 750 kg breakage index. |
| Grips | Anodized aluminum , rolled favoring grip. |
| security system | Security lever |
| axes | 10mm thick plates cut to laser with another 10mm thick plate to reinforce , to get a soft movement without slack or torsions produced by the continuous use or load. |
| Loading capacity | 310 mm supports for 6 20 kg BODYTONE discs per arm (up to 240 kg for starting) |
