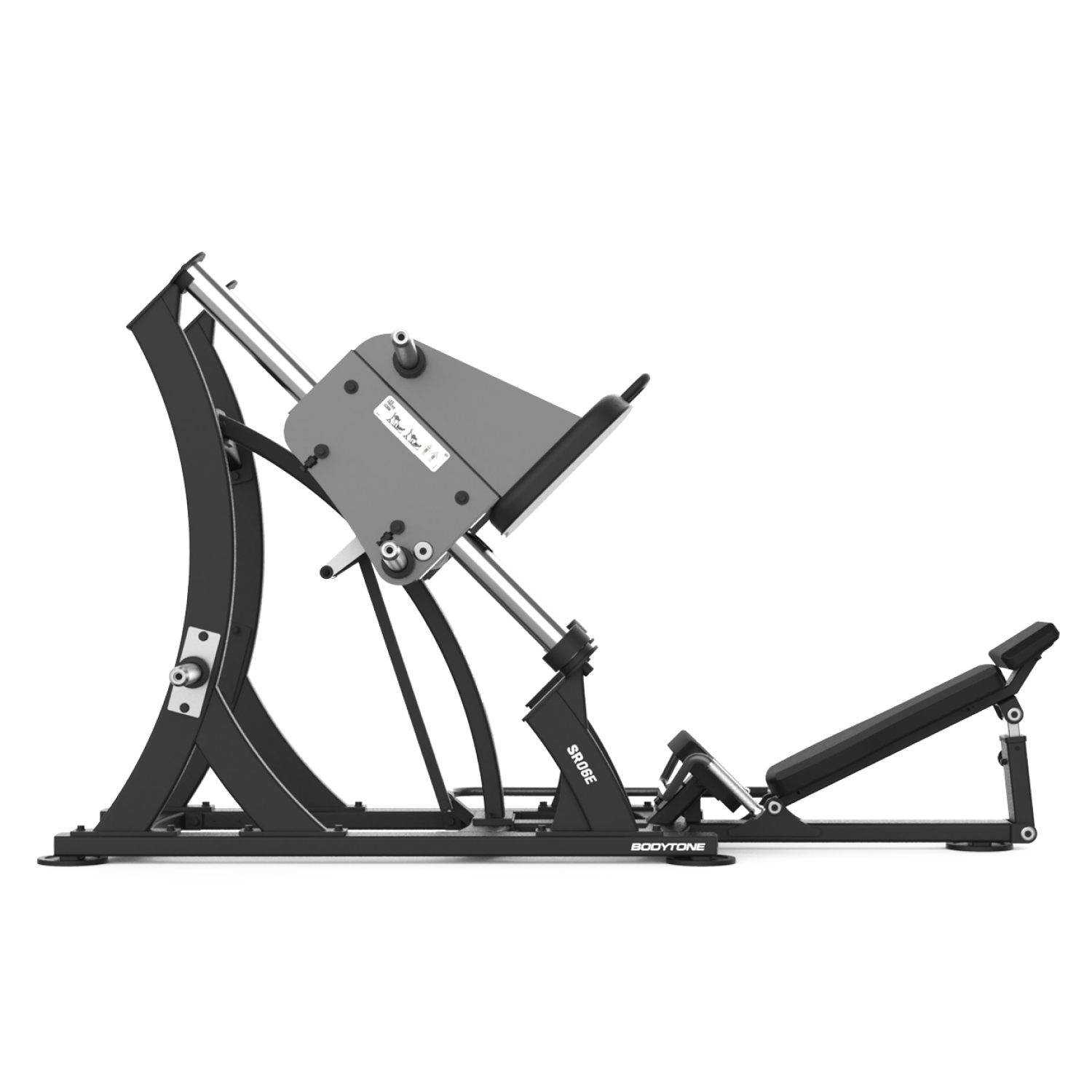

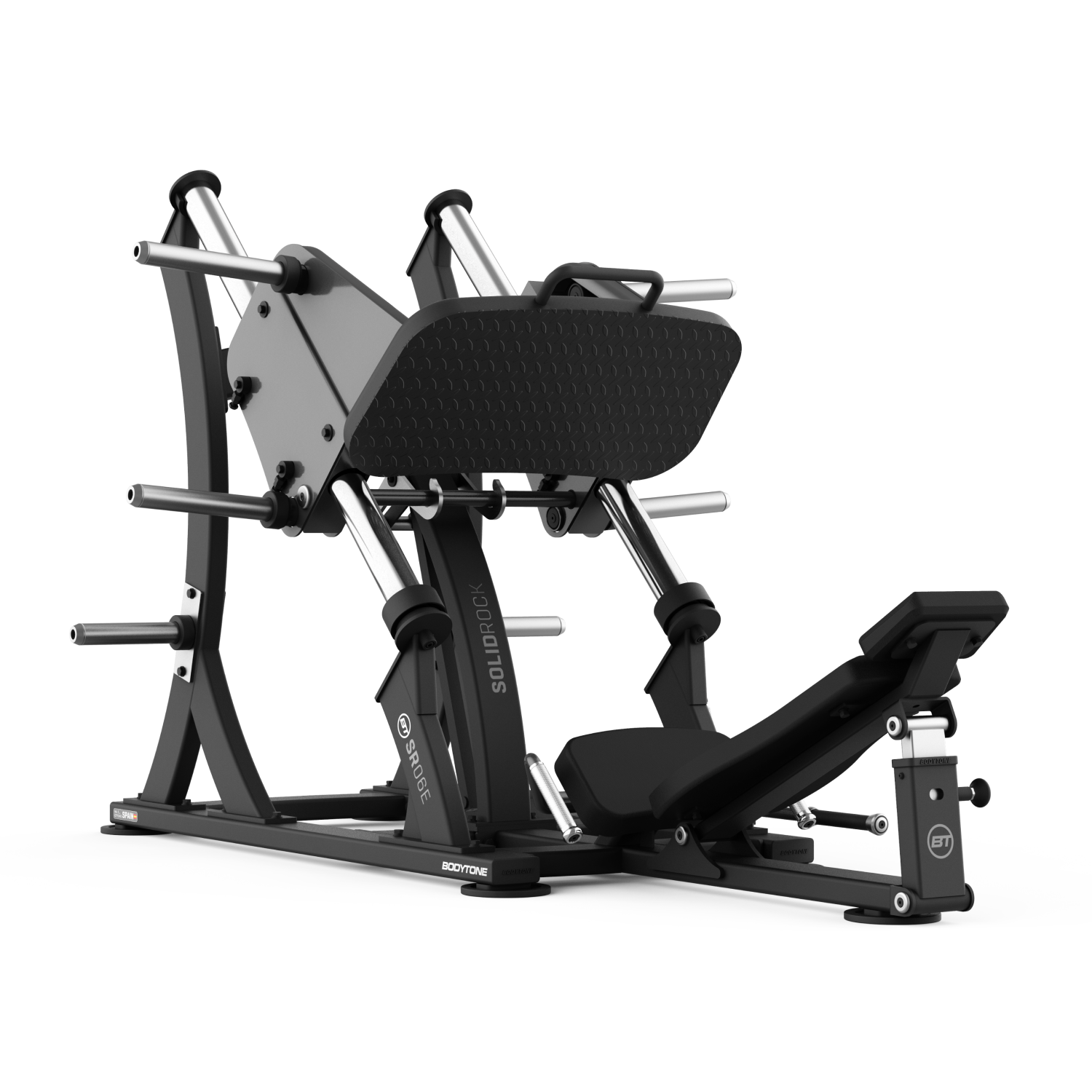

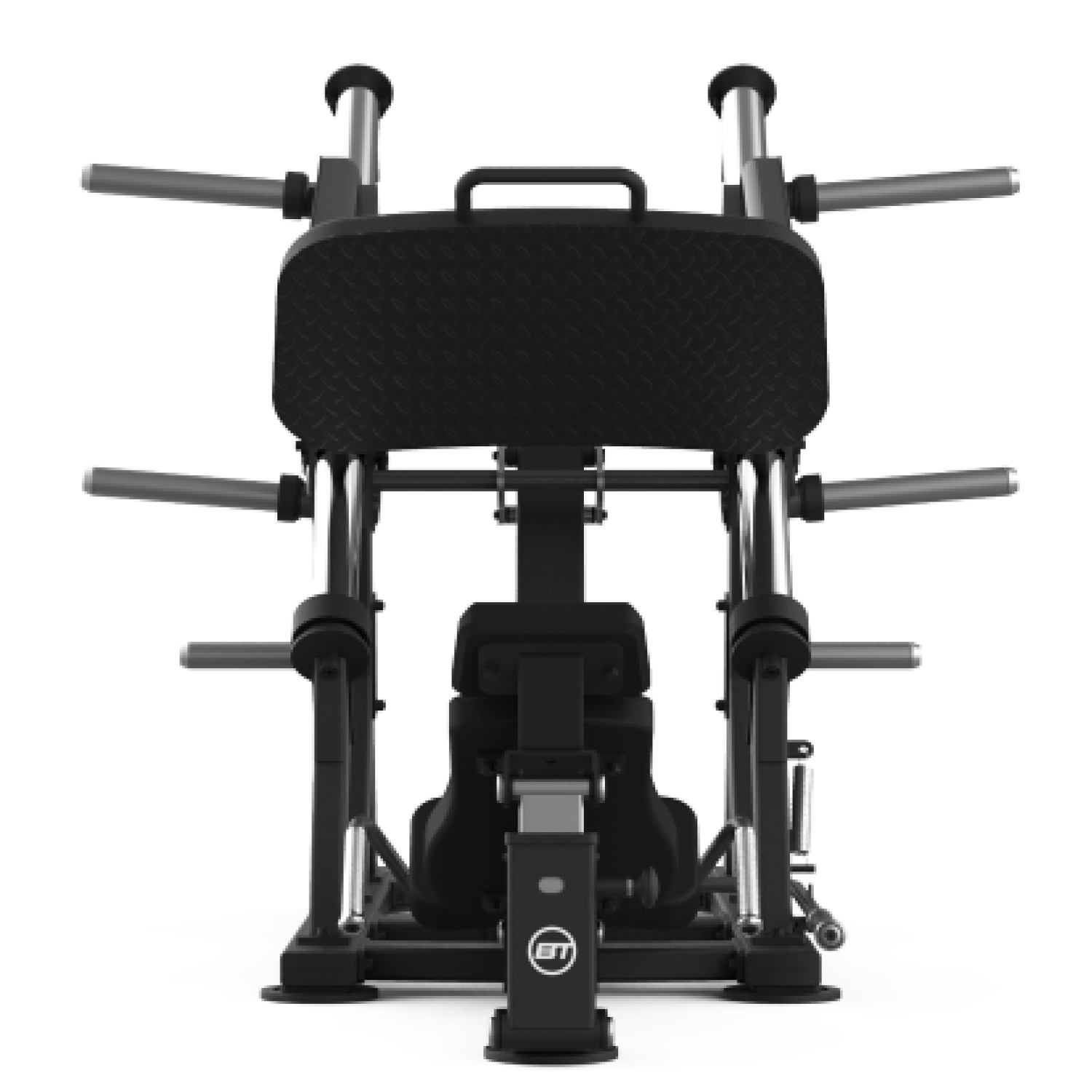

Inclined Press SR06E
SR06EIncline disc press machine for legs
Downloads
Description
Incline disc press machine for legs
Solid Rock’s professional weight training machines stand out for design and innovation. They have a careful aesthetic and are equipped with the latest technology. In Bodytone’s Solid Rock line of strength machines, our brand is committed to a completely renewed design where curves and design prevail along with the corporate color, green, which gives it that sporty and elegant air.
Solid equipment Rock use technology from the automotive industry so that the structure and paint last up to 10 years or more. A guarantee of quality, resistance and durability.
Additional informationAdditional information
| Weight | 265 kg |
|---|---|
| Dimensions | 247 × 152 × 150 cm |
| Product Range | |
| Training type | |
| Product Line | |
| Sports | |
| structure | 110 x 52 mm steel tubes with 3 mm thick. Soldier according to the regulation of UNE 10219 , Quality S-275-J0H. Enriched and optimized to maintain a constant section in the curved process , thus avoiding sensitive areas and minimizing the break rate. Cold curved process , through 4 roller system , avoiding all deformation in the process and maintaining physical characteristics throughout the piece. Closed welding perimeter at structural points and union plates. |
| Materials and finishes | 20 mm thick rubber finishes in disc supports. 50 mm thick rubber finishes to support moving parts. |
| units | one |
| Use zone | Inside |
| Assembly Process | 10 mm plaque system against plate , to avoid slacks and torsions in the maximum effort areas. An ergonomic and biomechanical study to optimize each exercise. |
| design | Study of biomechanics and ergonomics under the supervision of associated professionals and athletes. After a long design period; From the sketch , research in Motorering , production of prototypes , test by professional athletes our products are market. |
| Assembled Dimensions | 250 x 188 x 154 cm |
| bearings | SKF Double belt rollers , housed in a closed bush , anti slack , ensuring a constant movement direction. |
| Regulation Levels | Adjustable support by pop -pin. Regulation system by means of a single bolt , manufactured in techno-polymer with 750 kg breakage index. |
| Grips | Anodized aluminum , rolled favoring grip. |
| security system | Security lever |
| axes | 10mm thick plates cut to laser with another 10mm thick plate to reinforce , to get a soft movement without slack or torsions produced by the continuous use or load. |
| Loading capacity | 310 mm supports for 6 20 kg BODYTONE discs per arm (up to 240 kg for starting) |
