Group Training Machine Indoor GT12
GT12Multiple training structure
Description
This structure allows group training with up to 12 users at the same time. Includes hangers for use in suspension training, ropes, elastic bands, etc.
Additional informationAdditional information
| Product Range | |
|---|---|
| Training type | |
| Product Line | |
| Sports | |
| Gross Weight | 276 kg |
| Net Weight | 253 kg |
| structure | 100×50 cm steel tube and 3 mm of welded expectant by robotic process , free of projections. Structural connection supports 8 + 8 mm \ plate plate, for an extra rigid union. |
| Color | |
| units | one |
| Other Specifications | Includes 120 x 35 cm boxing bag. This boxing sack is made of high density foam for an effective blow. Its weight is 35 kg and is covered with PVC. It also includes the hanger. Structure designed for group training between 12 and 15 users. |
| Use zone | Inside |
| Weight | |
| Painting Process | 3 layers of paint. Upon and stabilized steel by total immersion of the pieces in different degreasing solutions to guarantee a perfect and complete cleaning of the base material. Antioxidant Printing to guarantee adequate isolation of internal oxidation and a good adhesion of the paint. 2 Final layers of epoxy paint of polyester powder , drying 240oC. |
| design | Study of biomechanics and ergonomics under the supervision of associated professionals and athletes. After a long design period; From the sketch , research in Motorering , production of prototypes , test by professional athletes our products are market. |
| Assembled Dimensions | No accessories: 311 x 131 x 239 cm, with accessories: 386 x 150 x 239 cm |
| Work zone | Full Body |
| Bases | 6 mm \ steel stabilizer bases, avoiding the buckling of the structure. This base also allows twin work with bar. Base size of 130 x 30 x 3 , 3 cm bases screwed to the structure and screwed to the ground. |

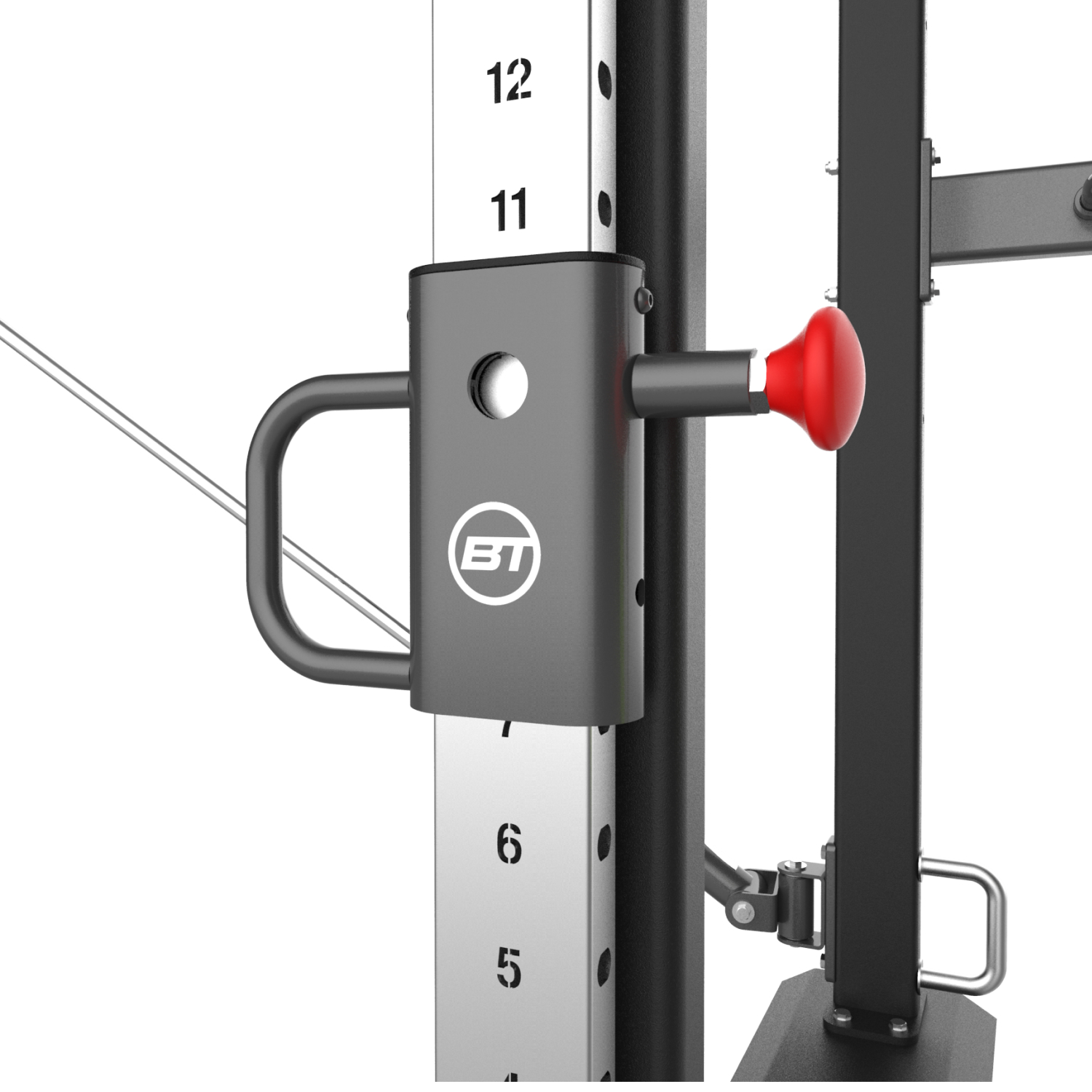

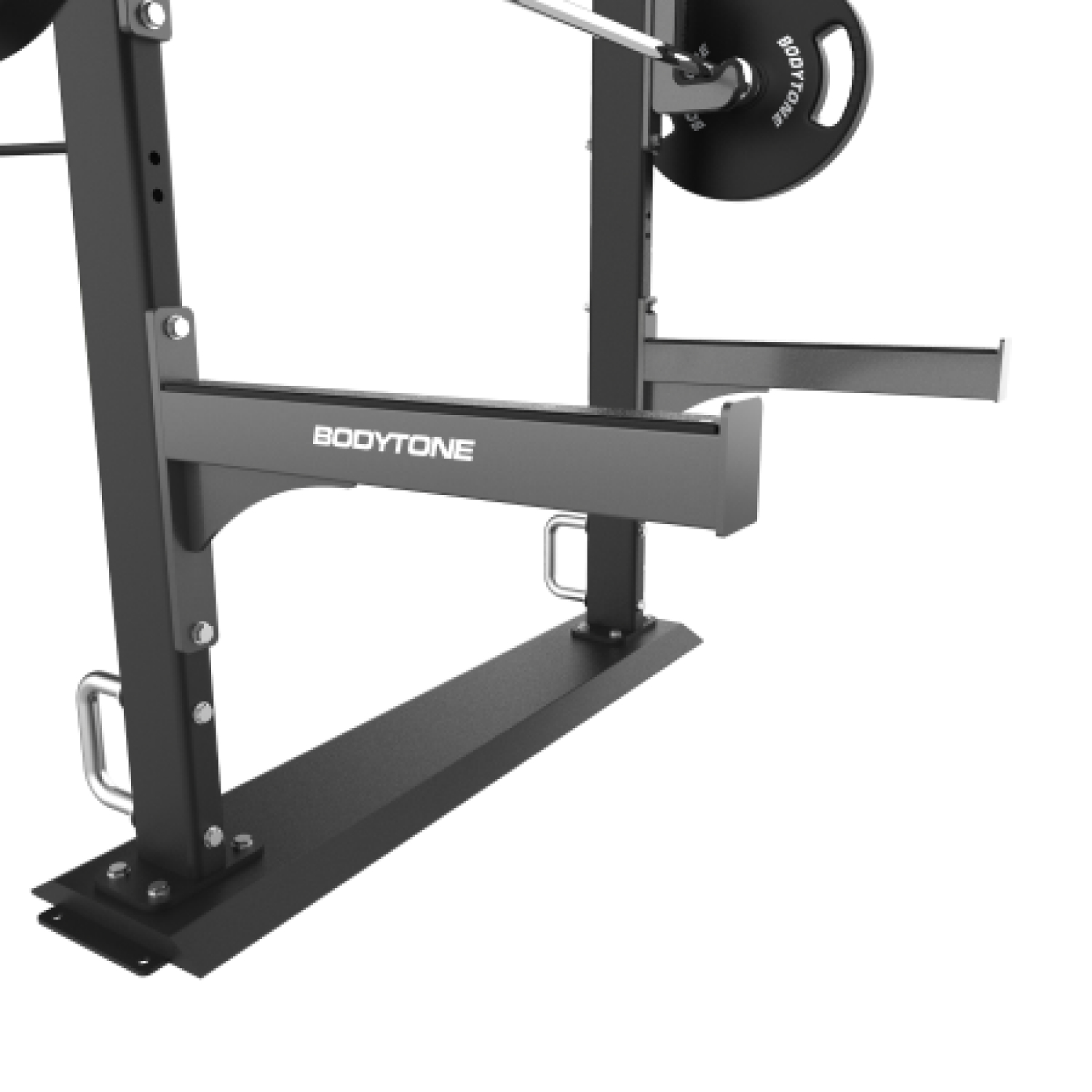

| security system | Safety supports set with screws and height adjustable in 3 positions , to avoid any incidence or injury. Made of steel and reinforced with non -slip ABS to prevent the bar from hitting the metal. 61 x 5 x 35 cm support Measures |
| Measures | No accessories: 311 x 131 x 239 cm, with accessories: 386 x 150 x 239 cm |

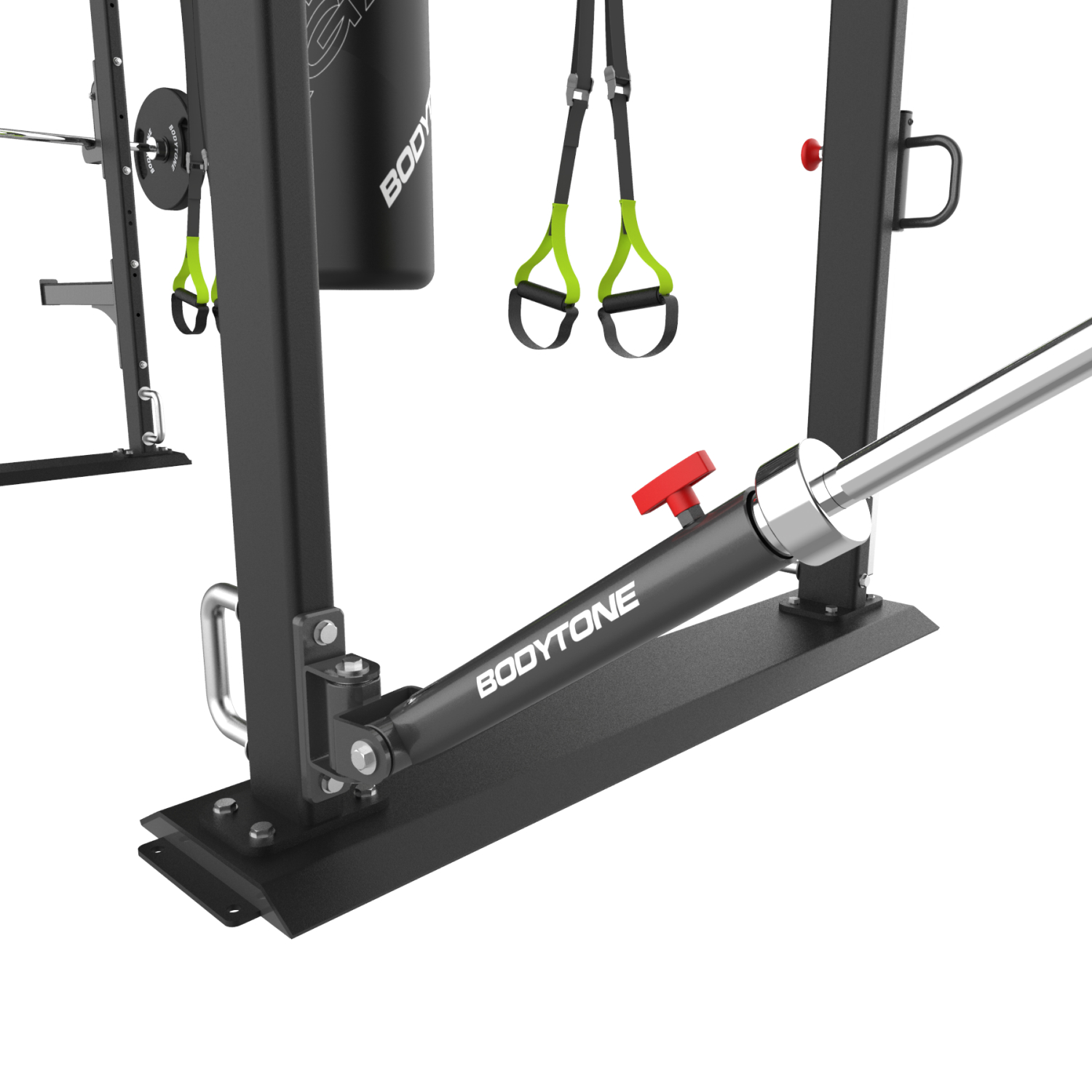

| Pieces moviles | Support for bars grip exercises on the ground , such as dead weights. Allows the horizontal and vertical rotation free of the bar thanks to its two 25 mm steel axes and inner calibrated steel axis. Contains ABS bolt with threaded insert to adjust the bar. The cylinder Measures 40 x 5 , 7 cm in diameter. Suitable for Olympic bars., 2 Olympic bar supports , fixed with screws and adjustable in 3 positions. Made of steel and reinforced with non -slip ABS to prevent the bar from hitting the metal. |
| Elements union | M12 screws and thermoplastic splints in 3 , 5 mm ABS |
| bars pull up | One on each side of the structure , with different Grips. A line in the center and open at the ends , painted gray. The other nickel -plated with straight grip. 32mm in diameter , on a structural tube of 60mm. |
| hangers | 9 Galvanized tube hangers 25mm in diameter. Valid to hang multiple accessories such as bands , strings , BTX , rings , boxing bags. Located 5 at the top and 4 in the bases. |
